Gearless Motor

Experience the excellence of our Gearless Motor, crafted for elite performance and reliability by us as a distinguished manufacturer, supplier, and trader with over 12 years of experience in the industry. Renowned for their superb engineering, our Gearless Motor and Lift Gearless Motor are the optimum choice for applications demanding the highest efficiency and precision. When you compare our offerings, you''ll find that we provide unmatched energy savings, reduced maintenance costs, and quieter operation-making our motors popular among discerning clients nationwide. The compact design allows for elite space-saving installation, while their exceptional durability ensures a longer operational life than traditional geared options. High torque delivery, smooth and vibration-free movement, and optimum safety features set our Gearless Motors apart, emphasizing our commitment to delivering the best solutions for your lift and elevator needs. With an all-India supply ability, you can confidently order these superb products knowing our reputation for quality and service is well established across the country. Choose our Gearless Motor range and experience the pinnacle of engineering excellence, efficiency, and reliability in every application.

Gearless Motor

MOQ : 1 Unit

  • Ambient Temperature
  • -10C to +50C
  • Bearing Type
  • Ball Bearing
  • Color
  • Silver Grey
  • Cooling Method
  • Air Cooled
  • Current Type
  • AC
  • Dimension (L*W*H)
  • 460x240x380 mm
  • Efficacy
  • IE3 High Efficiency
  • Features
  • High starting torque, low maintenance, compact design
  • Frequency (MHz)
  • 50 Hz
  • Horse Power
  • 10 HP
  • IP Rating
  • Other, IP54
  • Motor Type
  • Gearless AC Motor
  • Mounting Type
  • Foot Mounted
  • Noise Level
  • <65 dB
  • Output Power
  • 7.5 kW
  • Phase
  • Three Phase
  • Poles Number
  • 4
  • Power
  • Electric
  • Power Rating
  • 7.5 kW
  • Pressure
  • Other, Standard Atmospheric
  • Product Type
  • Other, Gearless Motor
  • Protect Feature
  • Other, Overload Protection
  • Rated Frequency
  • 50 Hz
  • Rated Voltage
  • 415 V
  • Sealed Type
  • Other, IP54 Enclosed
  • Shaft Diameter
  • 38 mm
  • Speed
  • 1440 RPM
  • Standard
  • IS 325
  • Starting Type
  • Direct On Line (DOL)
  • Torque
  • 58 Nm
  • Voltage
  • 415 V
  • Weight
  • 68 kg

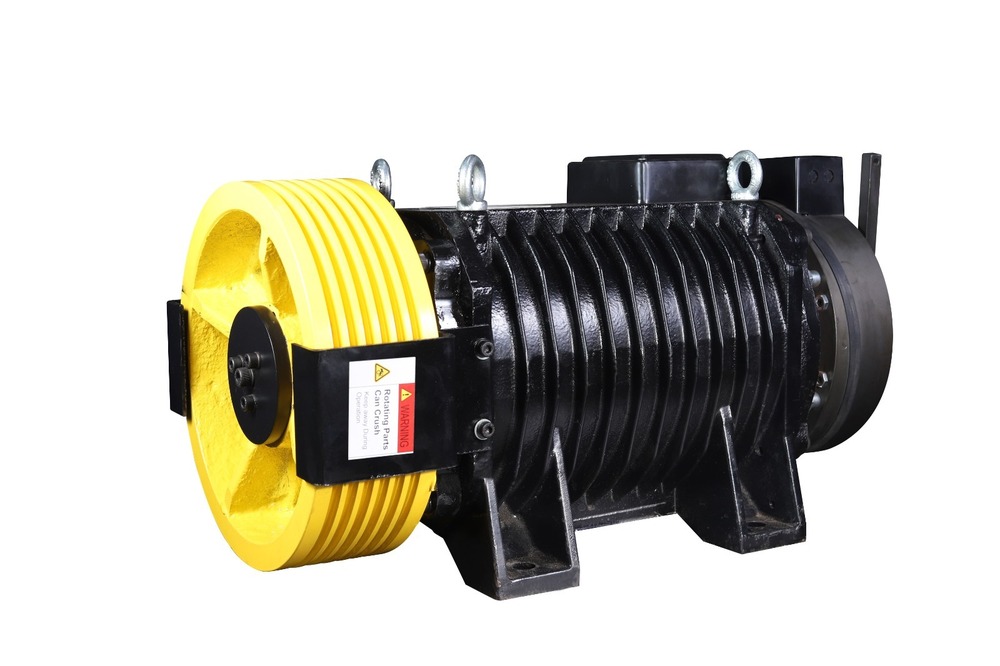

Lift Gearless Motor

MOQ : 1 Unit

  • Ambient Temperature
  • -10C to +40C
  • Bearing Type
  • Double Row Ball Bearing
  • Color
  • Blue/Black
  • Cooling Method
  • Natural Air Cooled
  • Current Type
  • AC
  • Dimension (L*W*H)
  • 520 x 400 x 550 mm
  • Efficacy
  • IE3 High Efficiency
  • Features
  • Smooth & Quiet Operation, Maintenance Free, Energy Saving
  • Frequency (MHz)
  • 50 Hz
  • Horse Power
  • 8.7 HP
  • IP Rating
  • Other, IP54
  • Motor Type
  • Permanent Magnet Synchronous Motor (PMSM)
  • Mounting Type
  • Flange Mount
  • Noise Level
  • <60 dB
  • Output Power
  • 6.5 kW
  • Phase
  • Three Phase
  • Poles Number
  • Other, 24
  • Power
  • 6.5 kW
  • Power Rating
  • 6.5 kW
  • Pressure
  • Other, Atmospheric
  • Product Type
  • Other, Lift Gearless Motor
  • Protect Feature
  • Other, Overload, Overcurrent, Phase Failure
  • Rated Frequency
  • 50 Hz
  • Rated Voltage
  • 380-415 V
  • Sealed Type
  • Other, IP54 Sealed
  • Shaft Diameter
  • 45 mm
  • Speed
  • 120-180 rpm
  • Standard
  • EN81-20/50
  • Starting Type
  • Direct On Line (DOL)
  • Torque
  • 320 Nm
  • Voltage
  • 380-415 V
  • Weight
  • 175 kg
